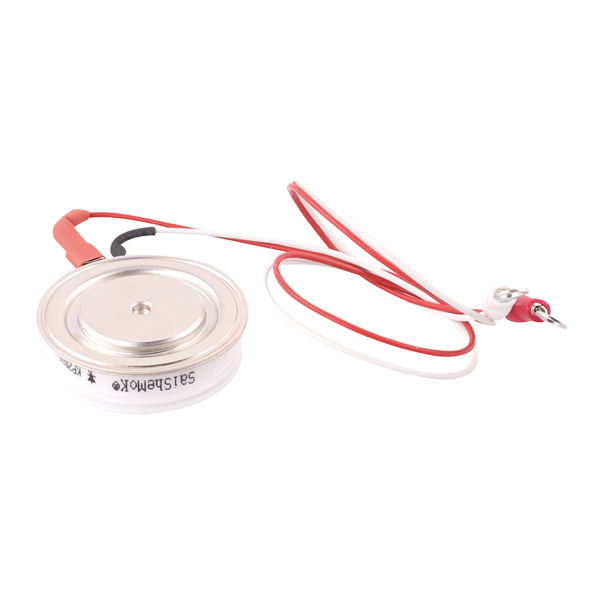

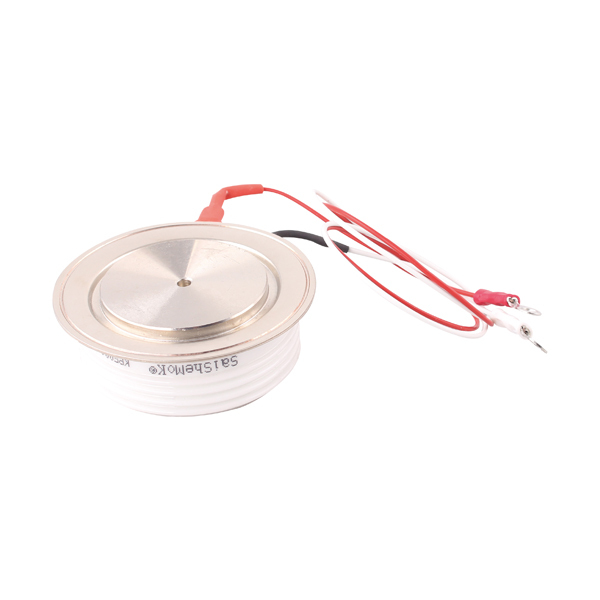

Soft Start Special Capsule Type Module
Full diffusion process，capsule type ceramic package
1. Amplifying gates
2. Double sided cooling
Typical Application：
1. High power transmission
2. DC and AC motor control, Controlled rectifier
3. AC DC switch,phase- controlled rectifying
4. Active and reactive inversion
Note: According to the actual soft start cabinet power personalized customization
■ IGT、VGT、IH are test values under 25℃ . Unless otherwise specified,other parameters in the parameter table are test values under Tjm.
■ I²t=I²TSM×tw/2: tw=bottom width of half-sinusoid current. Under 50Hz，I²t=0.00512TSM(A²S)
■ When working under the current of 60 Hz:ITSM(8.3ms)=ITSM(10M=ms)×1.066，Tj=Tjm I²t(8.3ms)=I²t(10ms)×0.943,Tj=Tjm
■ Gate lead： white or colorless,cathode lead (if necessary): red
