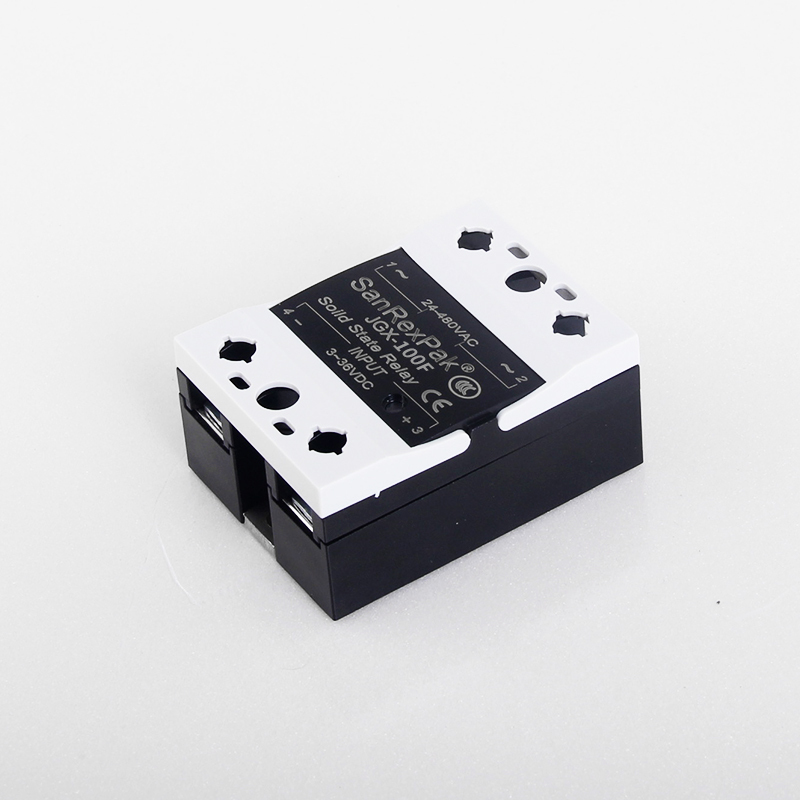

Single Phase Solid State Relay
SSR series solid state relay. The input control voltage is divided into DC control type and AC control type. The input current 5-200A is the input current of bidirectional SCR AC switch (common type)

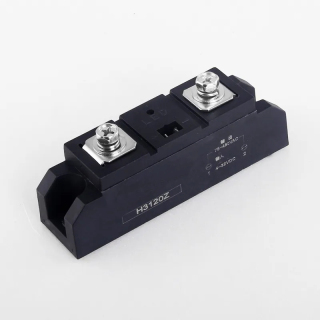

40-3000A is a single-phase SCR chip reverse parallel AC switch (industrial grade). The latter has higher dv /dt and di/dt tolerance, and the input and output are isolated by the photoelectric coupler. Control mode:
Dc control AC, zero crossing trigger. Input voltage 3-32V(12V is recommended) Input current >. 8mA, voltage is divided into 220V, 380V, 480V, 480V and high voltage 530V, 660V.
The actual use of the working current resistance load factor of 40%. Thermal grease should be applied between the solid state and the radiator. The torque for installing screws must be 30Kg higher.
In line with IEC International Electrotechnical Commission standards, multiple input and output options DC/ ac. AC/ ac. DC/DC, AC/DC
Data sheet as follow:
